Boss EX-4 Effects Expander - Compact Multi-Effects
Ships nationwide. Local pickup at the shop is free. Full shipping policy →
ON ORDER
The EX-4 is a compact Boss effects unit that adds to a pedalboard without replacing anything on it: up to four effects at once from 120 Boss types, plus foot volume, two noise suppressors and an effects loop in the same box.
The effects cover overdrive and distortion, modulation, delay, reverb and bass-tuned types. Gear Suite loads ready settings for each effect with one knob, and a 2.4-inch color screen shows the whole chain. Two footswitches run it stompbox-style in Manual mode or from presets, with 128 factory and 128 user memories. Stereo in and out, a send and return for your own pedals, TRS MIDI and USB-C are on the back, and the Boss PSA adaptor comes in the box.
Black. New from Boss.
Includes: AC adaptor (Boss PSA-S series), startup guide and four rubber feet
Weight: 1 lb 13 oz (800 g)

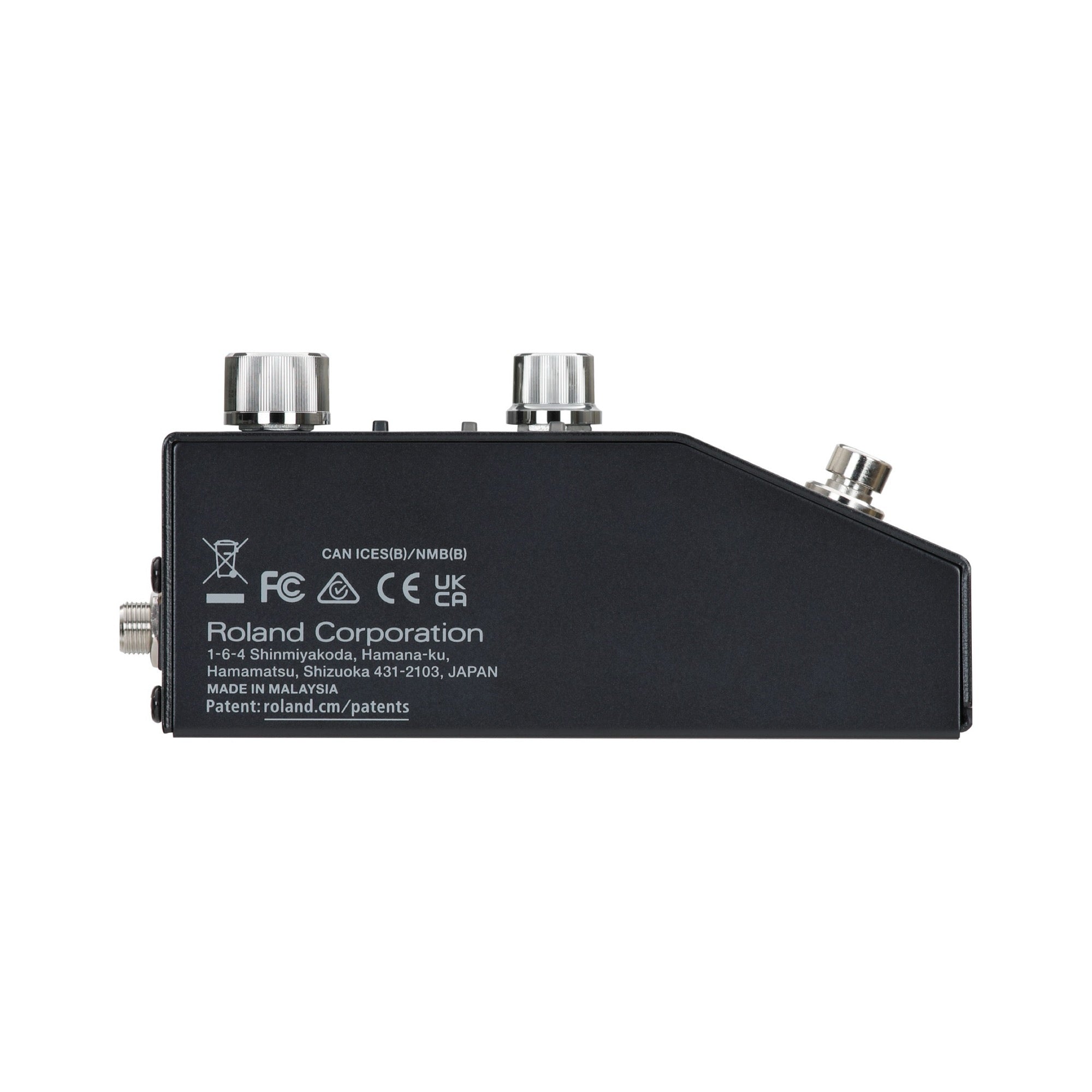

Dimensions: 4-5/8 x 5-7/16 x 2-9/16 in (W x D x H, with rubber feet); 117 x 138 x 65 mm

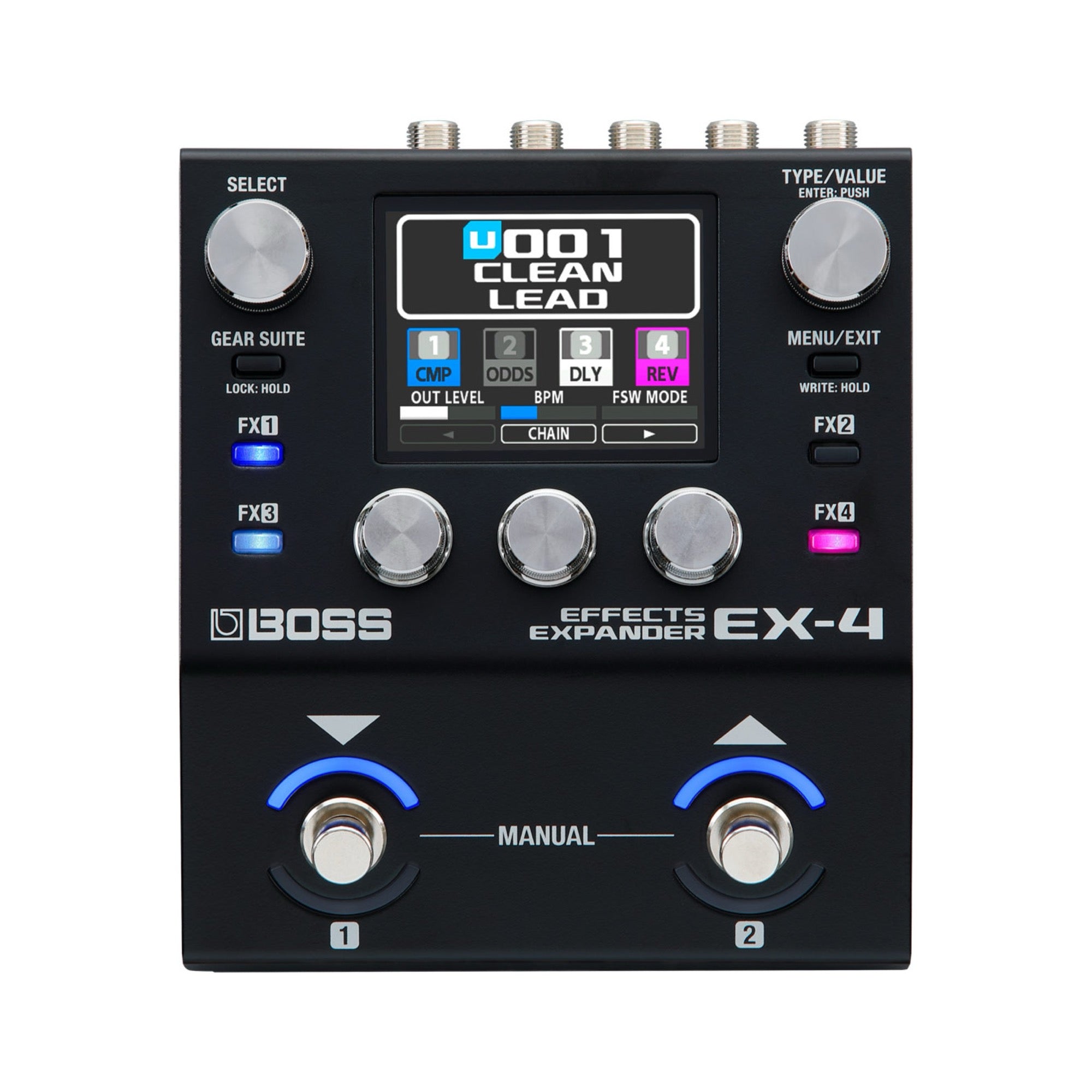

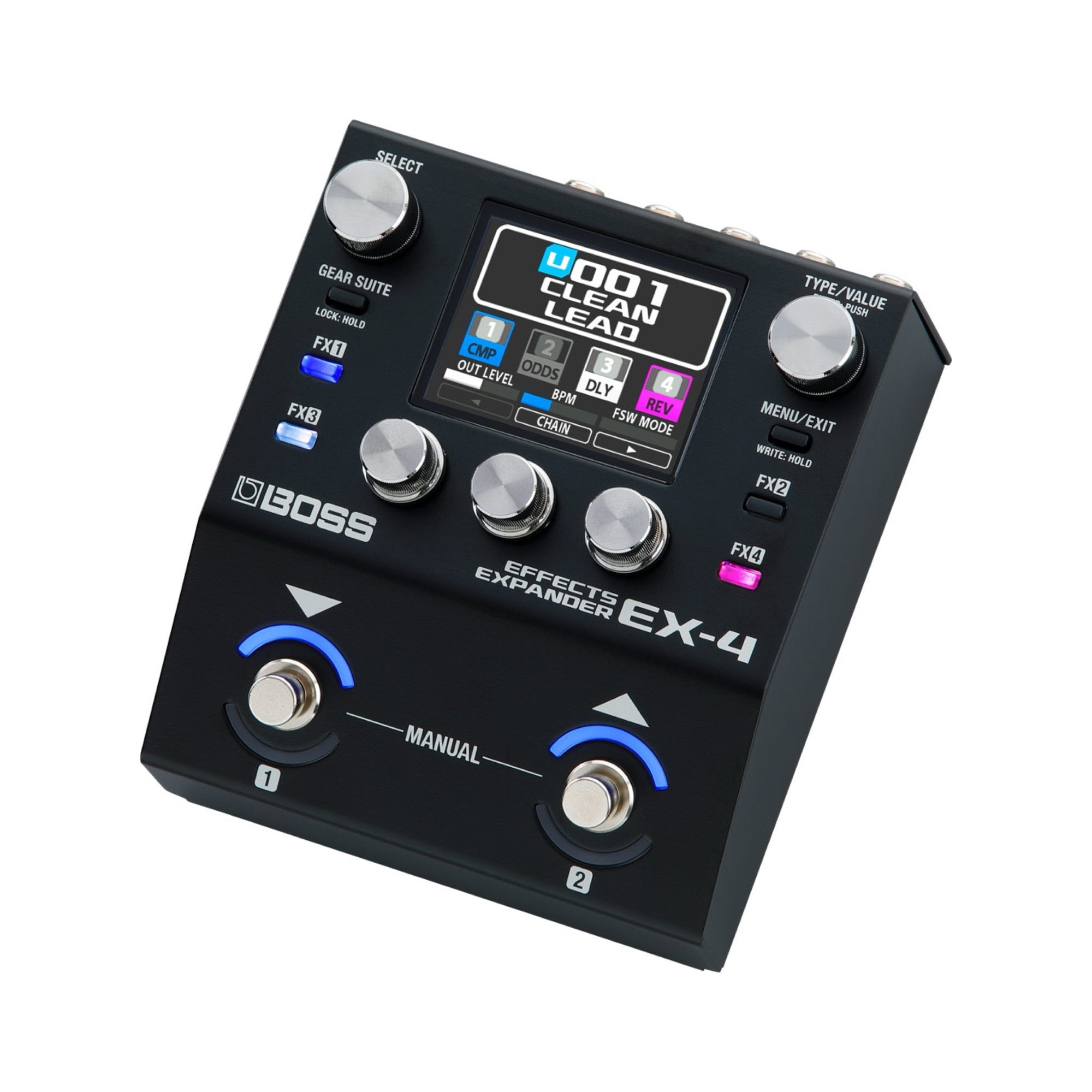

Controls: Down/1 and Up/2 footswitches; Menu/Exit, Gear Suite and FX1-FX4 buttons; Select, Type/Value and three parameter knobs; color LCD (320 x 240)

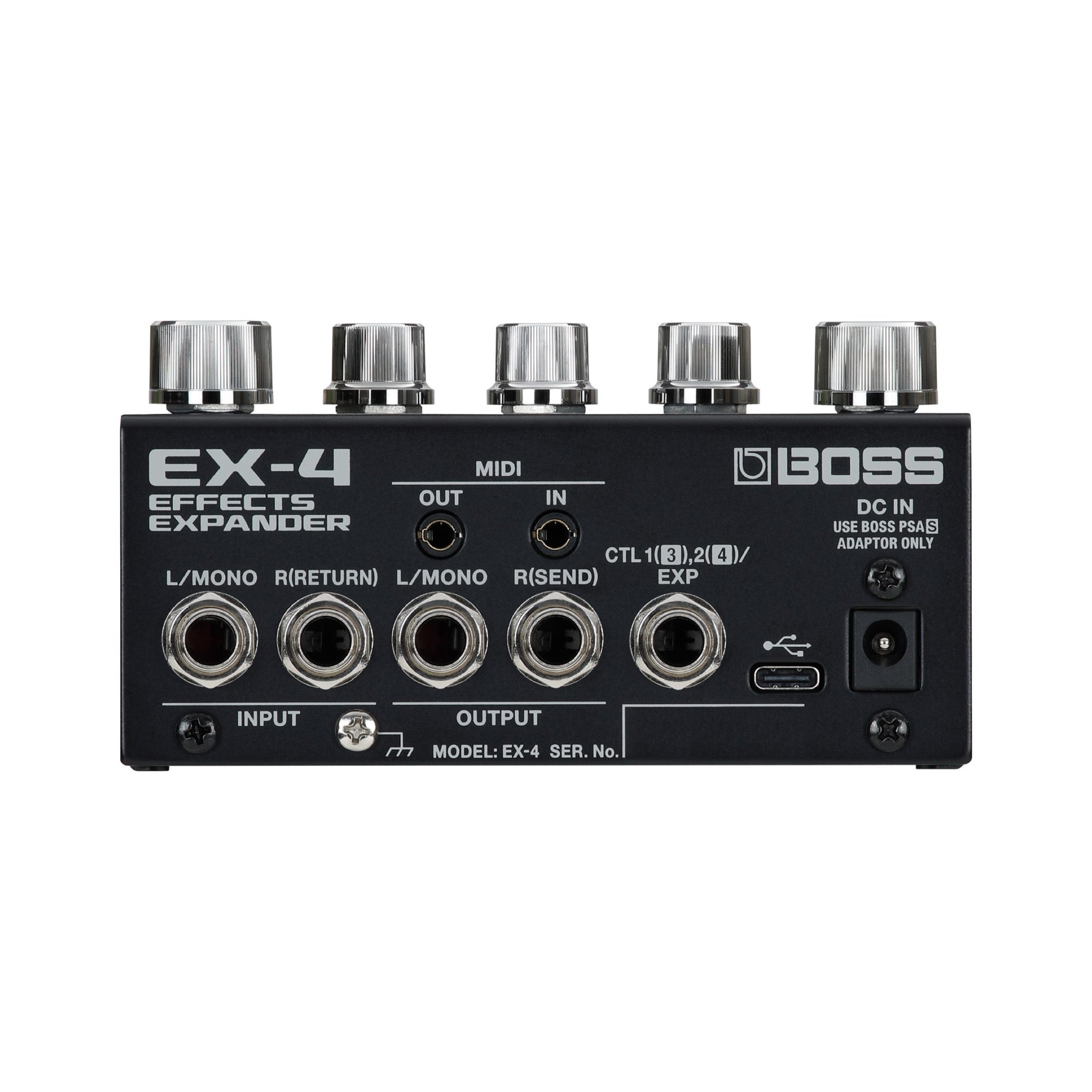

Inputs and outputs: Input L/Mono and R (Return), Output L/Mono and R (Send) (1/4-inch); MIDI In and Out (TRS mini); CTL 1,2/EXP (1/4-inch TRS); USB-C; DC In
Power: AC adaptor, Boss PSA-S series (included)
Current draw: 300 mA
Built-in effects: 120 types; up to 4 at once, plus divider/mixer, send/return, foot volume, two noise suppressors and global EQ
Footswitch: Optional: Boss FS-5U, FS-5L, FS-6 or FS-7; expression pedal FV-500L, FV-500H, EV-30 or Roland EV-5
Modes: Manual and Memory; 128 user and 128 preset memories
Who it's for: Guitarists and bassists who want more effects on a pedalboard without giving up the pedals already on it.
Questions
Does it work for bass?
Yes. Boss includes bass-tuned effects, and the 128 preset memories cover guitar and bass.
Can I put my own pedals in the chain?
Yes. The send and return place external pedals inside the EX-4's chain, and the order can be rearranged.
Is the power supply included?
Yes, a Boss PSA-S series adaptor is in the box.
