Boss DM-2W - Waza Craft Delay
Ships nationwide. Local pickup at the shop is free. Full shipping policy →
A Boss DM-2W Delay, Waza Craft, made in Japan. An all-analog bucket-brigade delay, the 1984 DM-2 reissued with two modes: Standard, the original sound with its 20 to 300 ms range, and Custom, a cleaner analog tone with up to 800 ms. Repeat rate, intensity and echo knobs, a direct out so the dry and delayed signals can go to separate amps, and a TRS rate jack for an expression pedal. Mono in, on a 9V battery or a PSA adapter.
Bucket-brigade delay is the warm, darkening repeat that digital delays imitate, and the DM-2 was the pedal that defined it. Standard mode is that pedal. Custom mode is the same chip run cleaner and longer, for players who want the analog character with a usable dotted-eighth.
New from Boss. Comes with a 9V battery; the PSA adapter is sold separately.
Includes: 9 V battery
Weight: 1 lb 1 oz (460 g)
Dimensions: 2-7/8 x 5-1/8 x 2-3/8 in (W x D x H); 73 x 129 x 59 mm

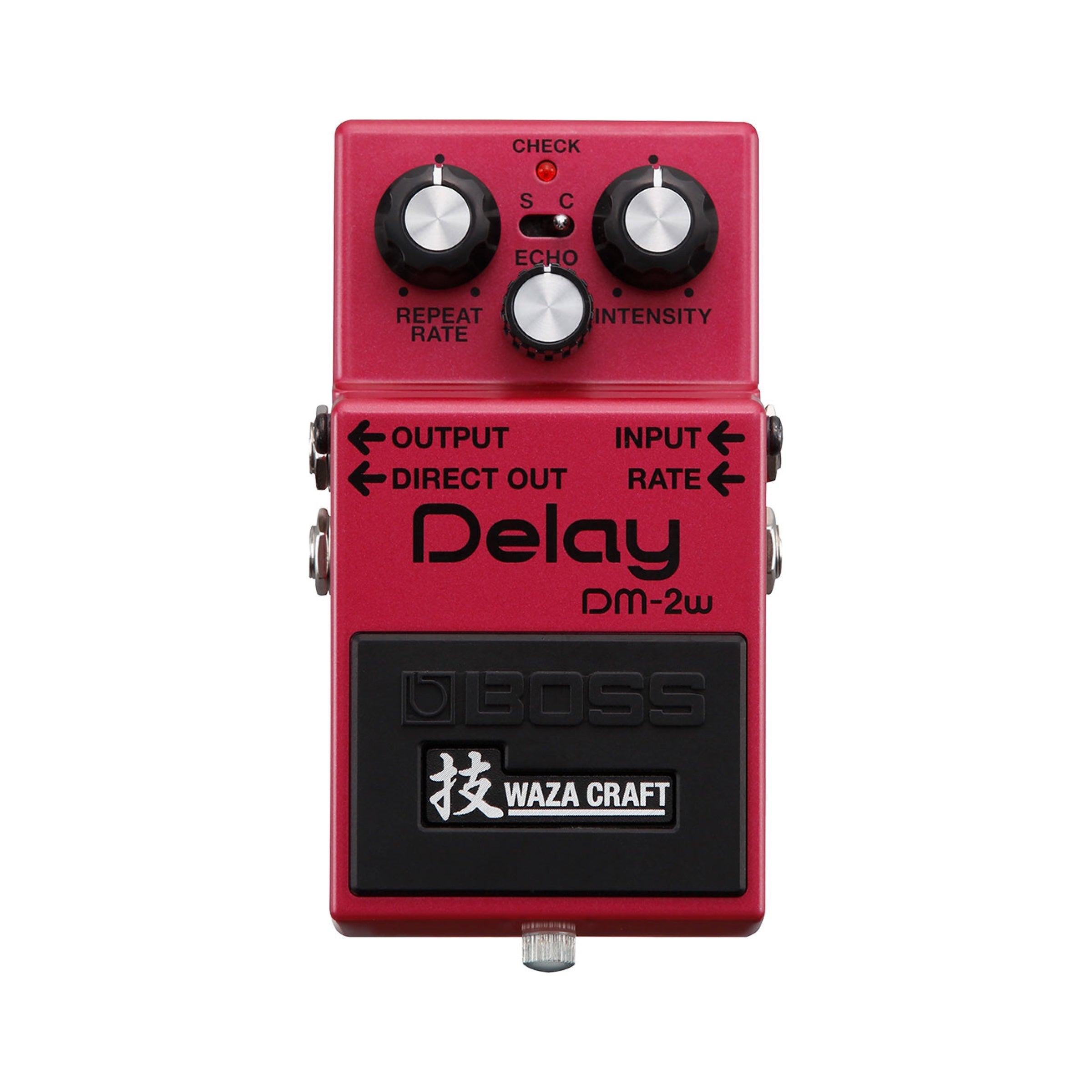

Controls: Pedal switch, REPEAT RATE knob, INTENSITY knob, ECHO knob, Mode switch

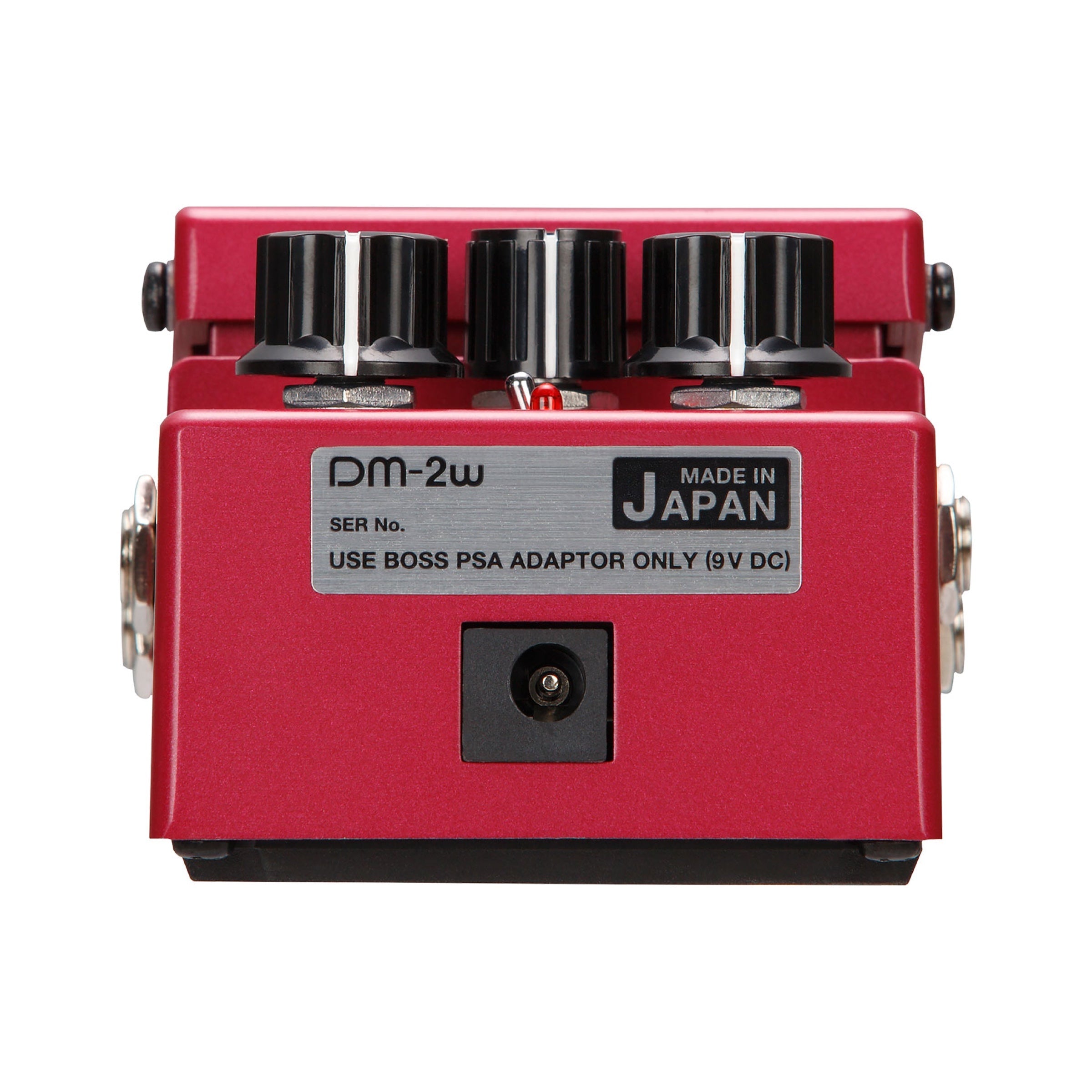

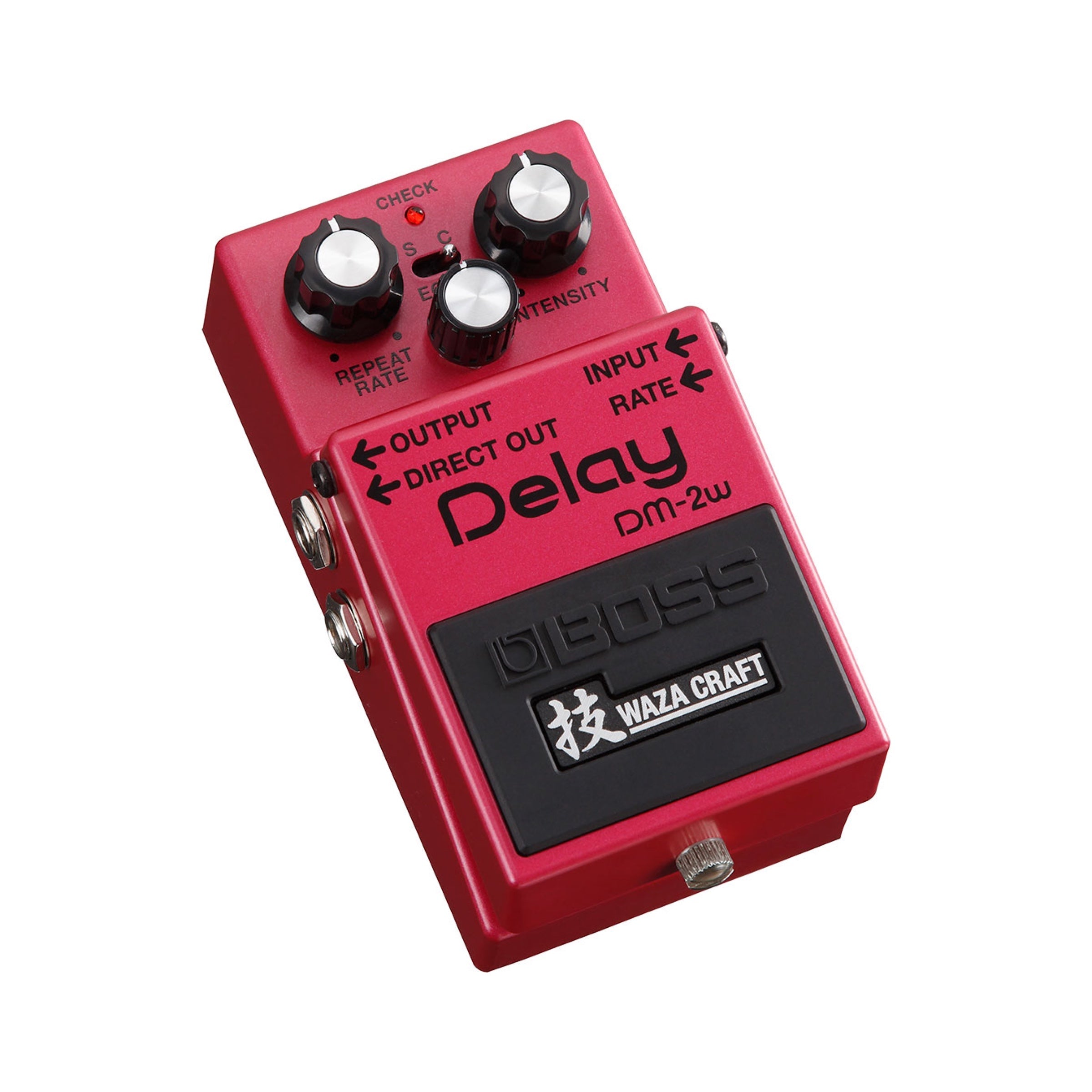

Inputs and outputs: INPUT jack: 1/4-inch phone type, OUTPUT jack: 1/4-inch phone type, DIRECT OUT jack: 1/4-inch phone type, RATE jack: 1/4-inch TRS phone type, DC IN jack
Power: Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22), AC adaptor (PSA series: sold separately)
Current draw: 35 mA
