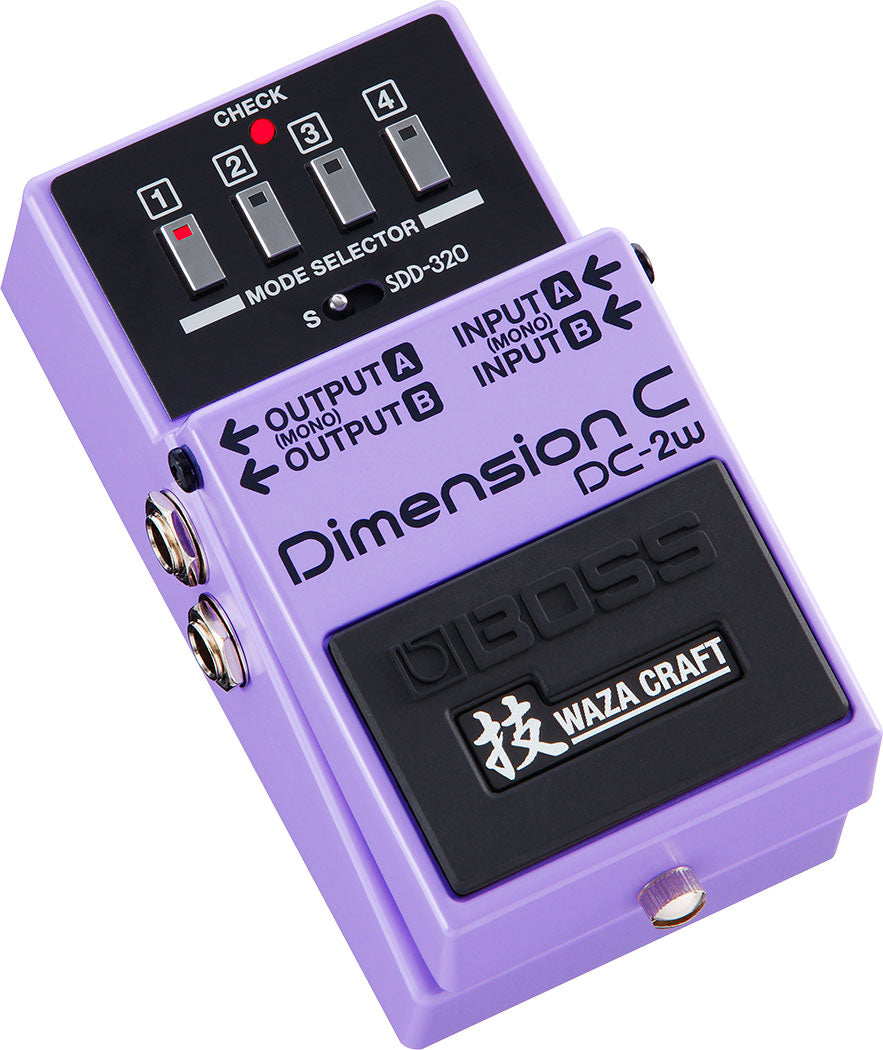

Boss DC-2W - Waza Craft Dimension C
Ships nationwide. Local pickup at the shop is free. Full shipping policy →
Dimension is not chorus in the usual sense: it widens and deepens a signal without the obvious wobble, which is why studios ran the Roland SDD-320 on guitars, keys and vocals. The DC-2W is the analog recreation of the 1985 DC-2 pedal, with a second mode for the SDD-320 rack it came from.
The same four-button preset interface as the original, now on electronic switching so buttons can be combined for sounds the vintage units could not make. There are no knobs, only the four buttons, and that is faithful to the original. Stereo in and out on four 1/4 inch jacks, buffered bypass, 65 mA on a 9V battery or a PSA adapter.
New from Boss. Comes with a 9V battery; the PSA adapter is sold separately.
Includes: 9 V battery
Weight: 1 lb (450 g), with battery
Dimensions: 73 mm; 2-7/8 inches (W) x 129 mm; 5-1/8 inches (D) x 59 mm; 2-3/8 inches (H)

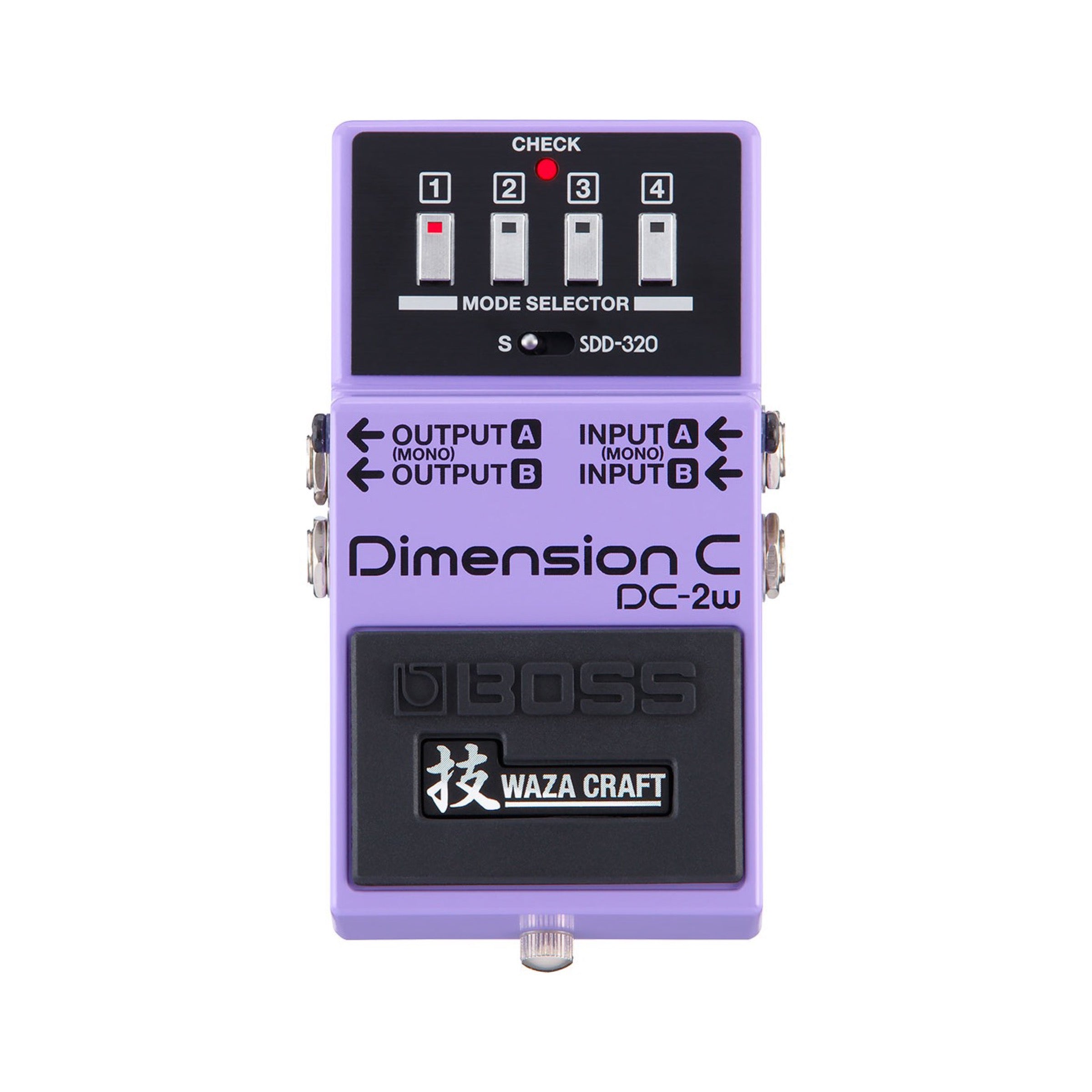

Controls: Pedal switch, S/SDD-320 switch, MODE SELECTOR [1]--[4] buttons
Bypass: Buffered bypass

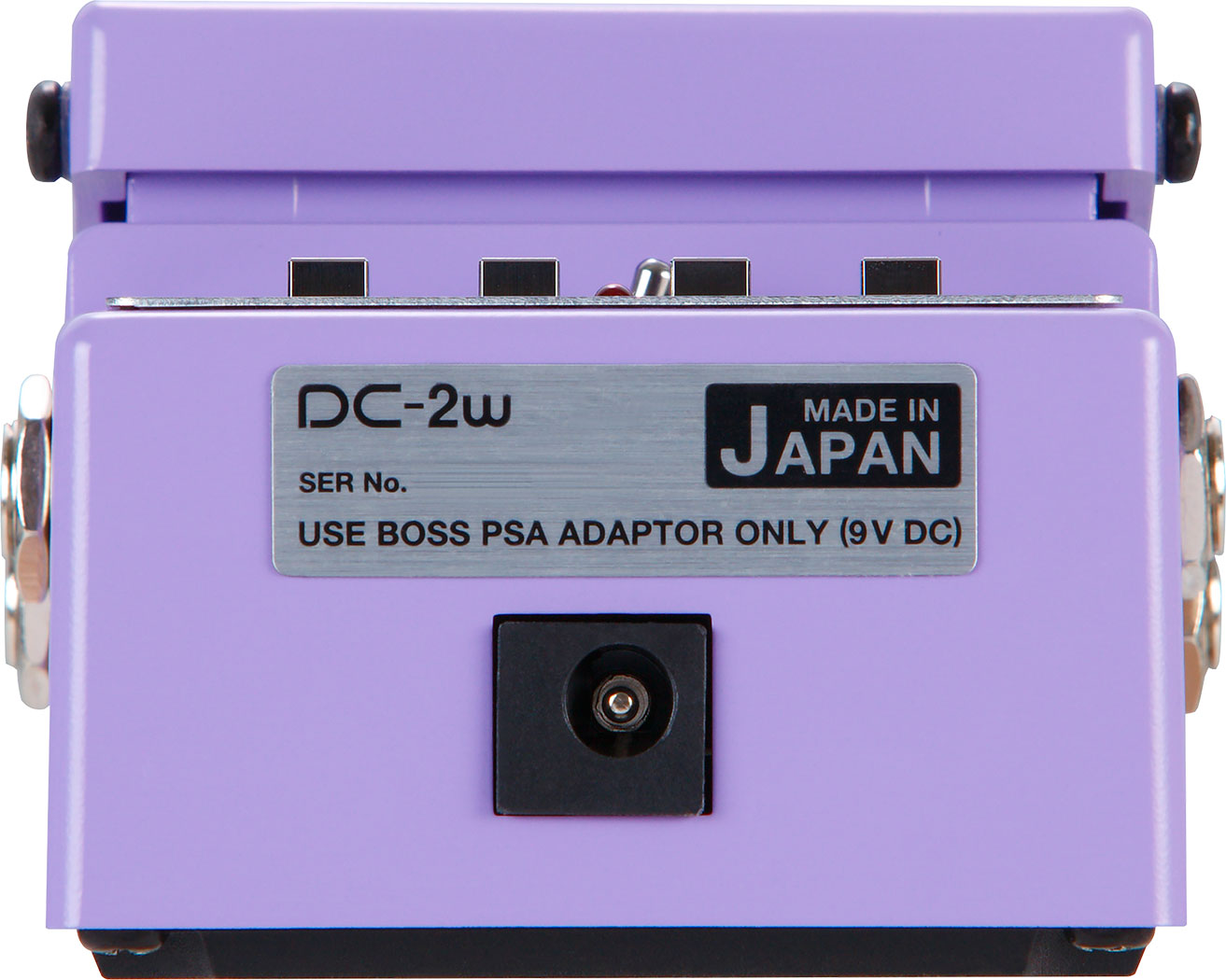

Inputs and outputs: INPUT A (MONO) jack: 1/4-inch phone type, INPUT B jack: 1/4-inch phone type, OUTPUT A (MONO) jack: 1/4-inch phone type, OUTPUT B jack: 1/4-inch phone type, DC IN jack
Power: Alkaline battery (9 V, 6LR61), AC adaptor (PSA series: sold separately)
Current draw: 65 mA
Built-in effects: S (Standard), SDD-320
