Boss OC-5 - Octave
Ships nationwide. Local pickup at the shop is free. Full shipping policy →
The OC-5 is two octave pedals in one: Vintage mode is a recreation of the mono 1982 OC-2, the fat sub-octave, and Poly mode tracks chords with no latency. The lowest-note setting in Poly mode turns a guitar into a guitar-plus-bass, and the octave up is new to the line.
Knobs for direct level, one octave up, one octave down, and a combined two-octaves-down and range control; in Poly mode the range knob sets which notes get the effect, down to only the lowest note in a chord. A guitar/bass switch, a direct out for splitting the dry signal, mono 1/4 inch in and out, buffered bypass, 60 mA on a 9V battery or a PSA adapter.
New from Boss. Comes with a 9V battery; the PSA adapter is sold separately.
Includes: 9 V battery
Weight: 1 lb (440 g), with battery
Dimensions: 2-7/8 x 5-1/8 x 2-3/8 in (W x D x H); 73 x 129 x 59 mm

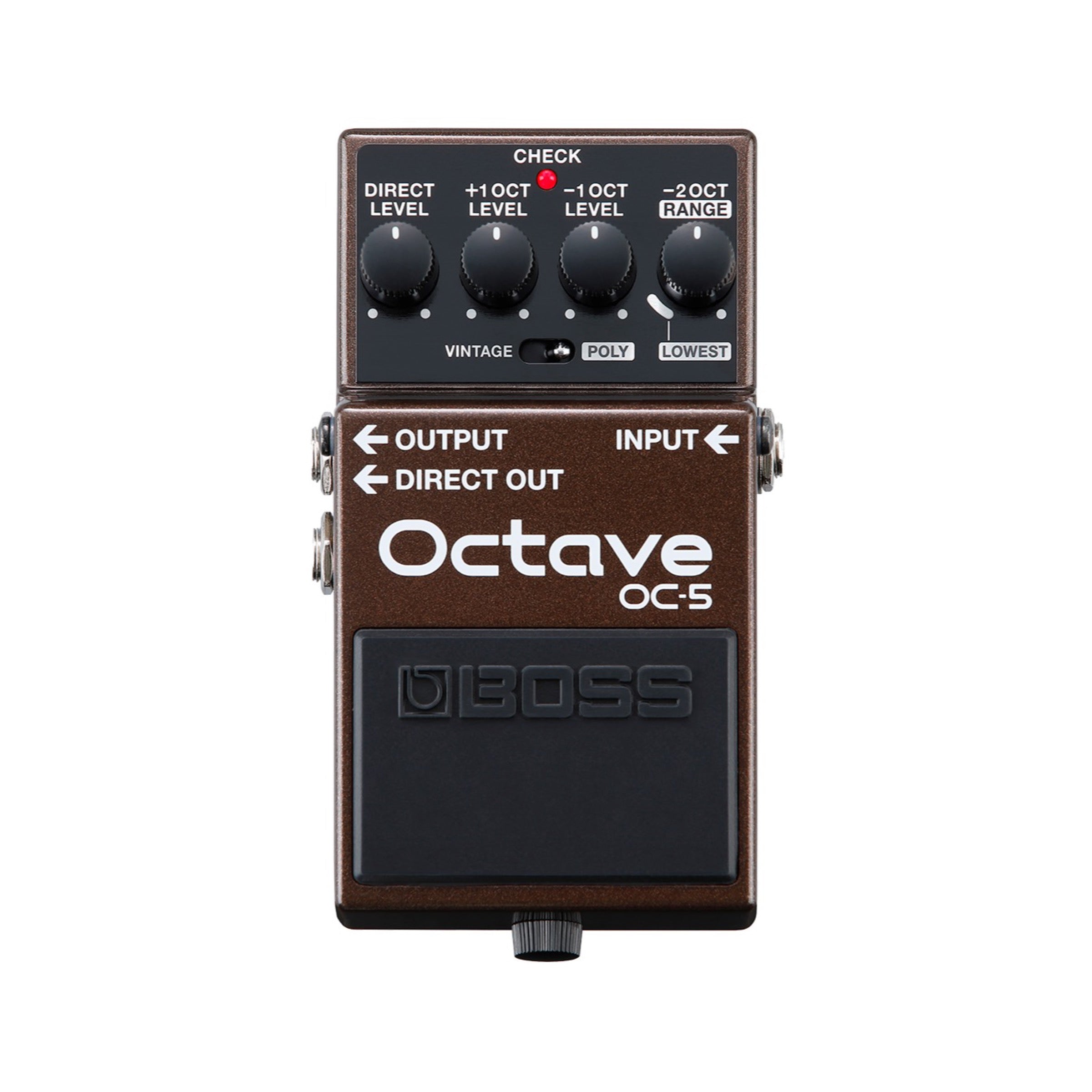

Controls: Pedal switch, GUITAR/BASS switch, VINTAGE/POLY switch, DIRECT LEVEL knob, +1OCT knob, -1OCT knob, -2OCT/RANGE knob
Bypass: Buffered bypass
Inputs and outputs: INPUT jack: 1/4-inch phone type, OUTPUT jack: 1/4-inch phone type, DIRECT OUT jack: 1/4-inch phone type, DC IN jack
Power: Alkaline battery (9 V, 6LR61 or 6LF22), AC adaptor (PSA series: sold separately)
Current draw: 60 mA
