Fishman Platinum Stage EQ/DI - Analog Preamp
Ships nationwide. Local pickup at the shop is free. Full shipping policy →

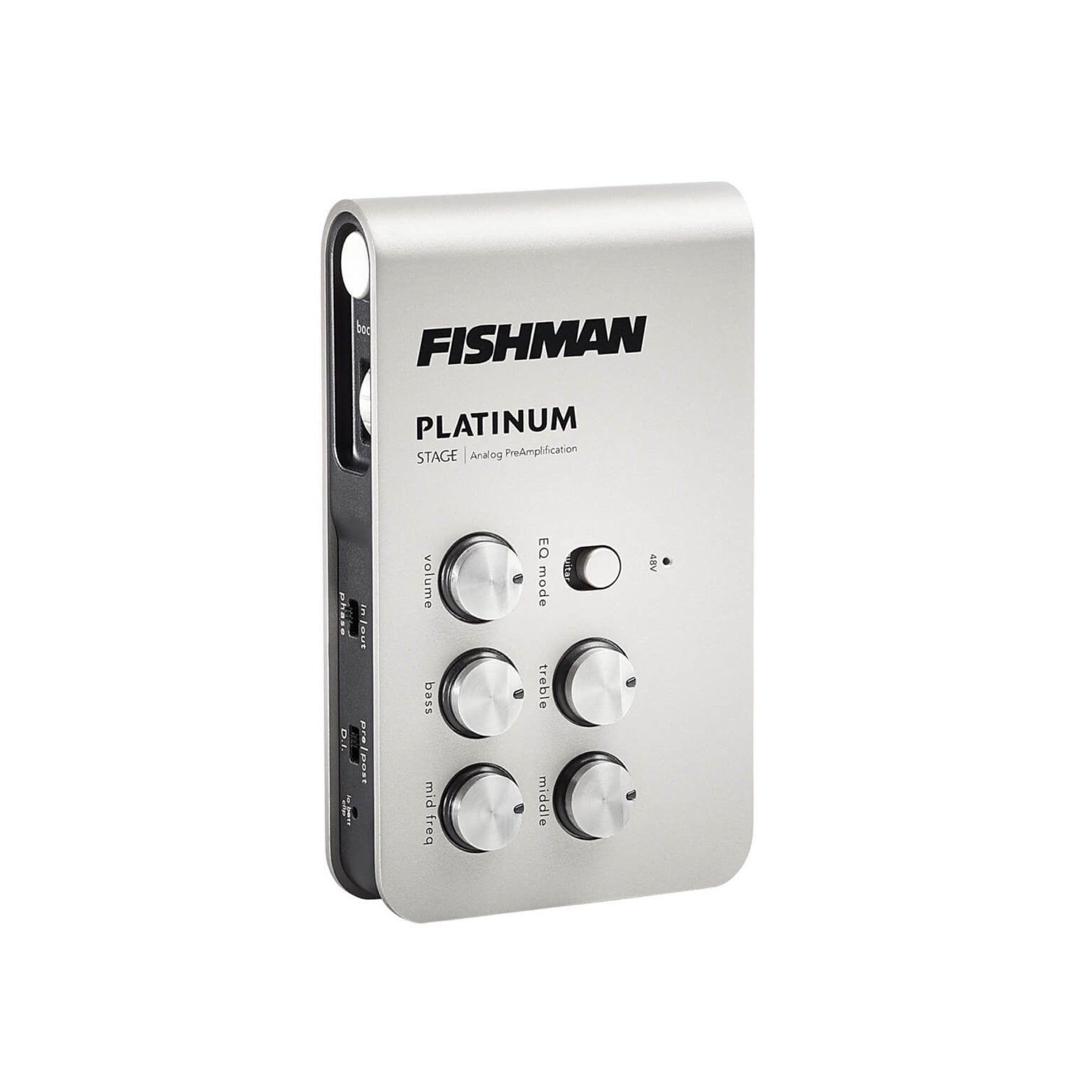

The Platinum Stage is a full acoustic preamp and D.I. small enough to wear on its belt clip: pickup in, a shaped quarter-inch signal out to the amp, and a balanced XLR line to the board without a separate direct box.
The Fishman circuit is a 17-volt discrete Class A preamp with a four-band EQ and sweepable mid, a guitar or bass EQ mode, a low-cut filter, and a phase switch for feedback. A button on the side adds a boost you can set from 3 to 12 dB. The D.I. takes its signal before or after the EQ, and lifts its own ground when the quarter-inch output is also connected. It runs on a 9-volt battery, phantom power from the board, or the optional 910-R adapter.
New from Fishman.
Includes: Belt clip. 9-volt battery not included.
Weight: 0.65 lbs (0.30 kg)
Dimensions: 5.6" L x 3.3" W x 1.2" H (143 mm x 85 mm x 30 mm)

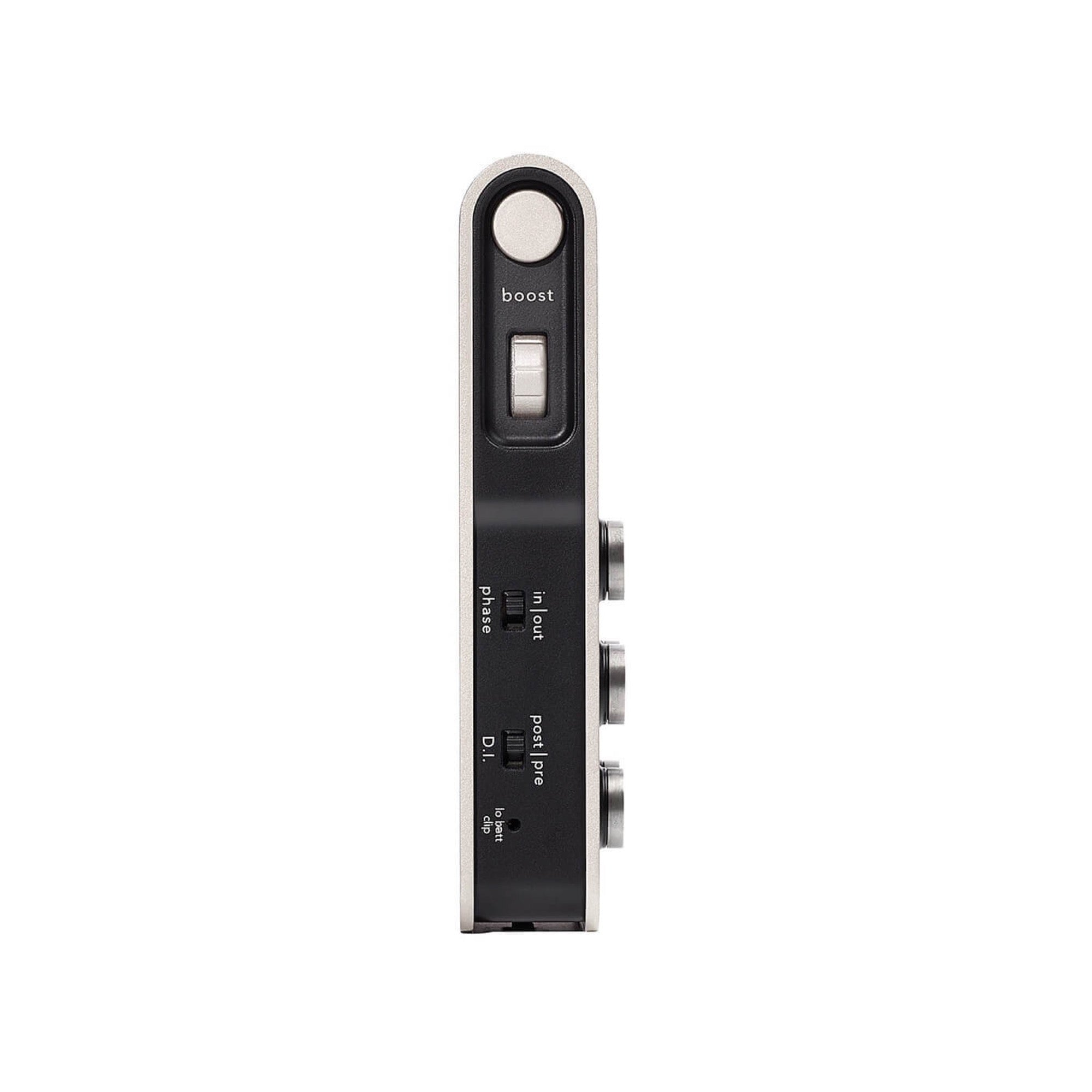

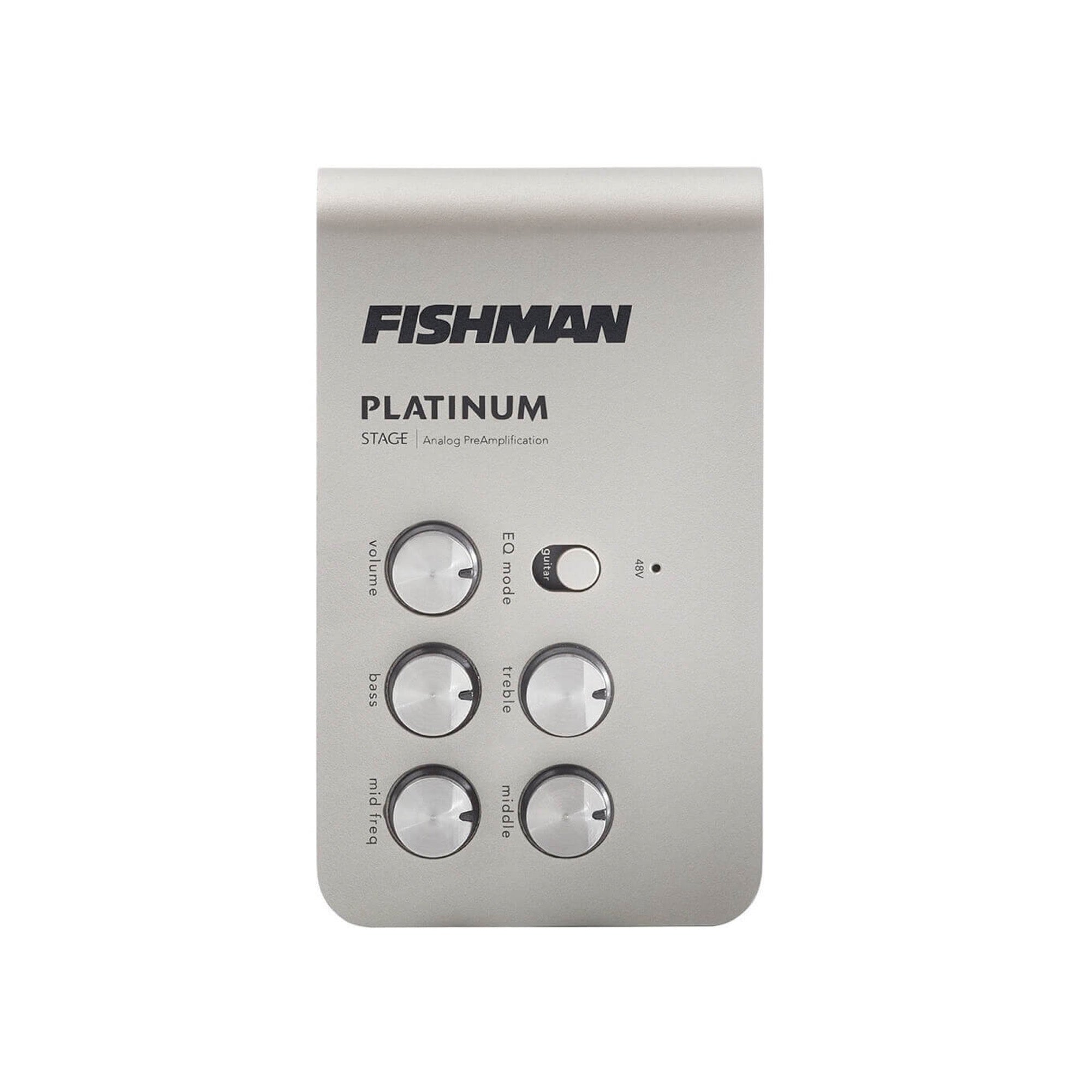

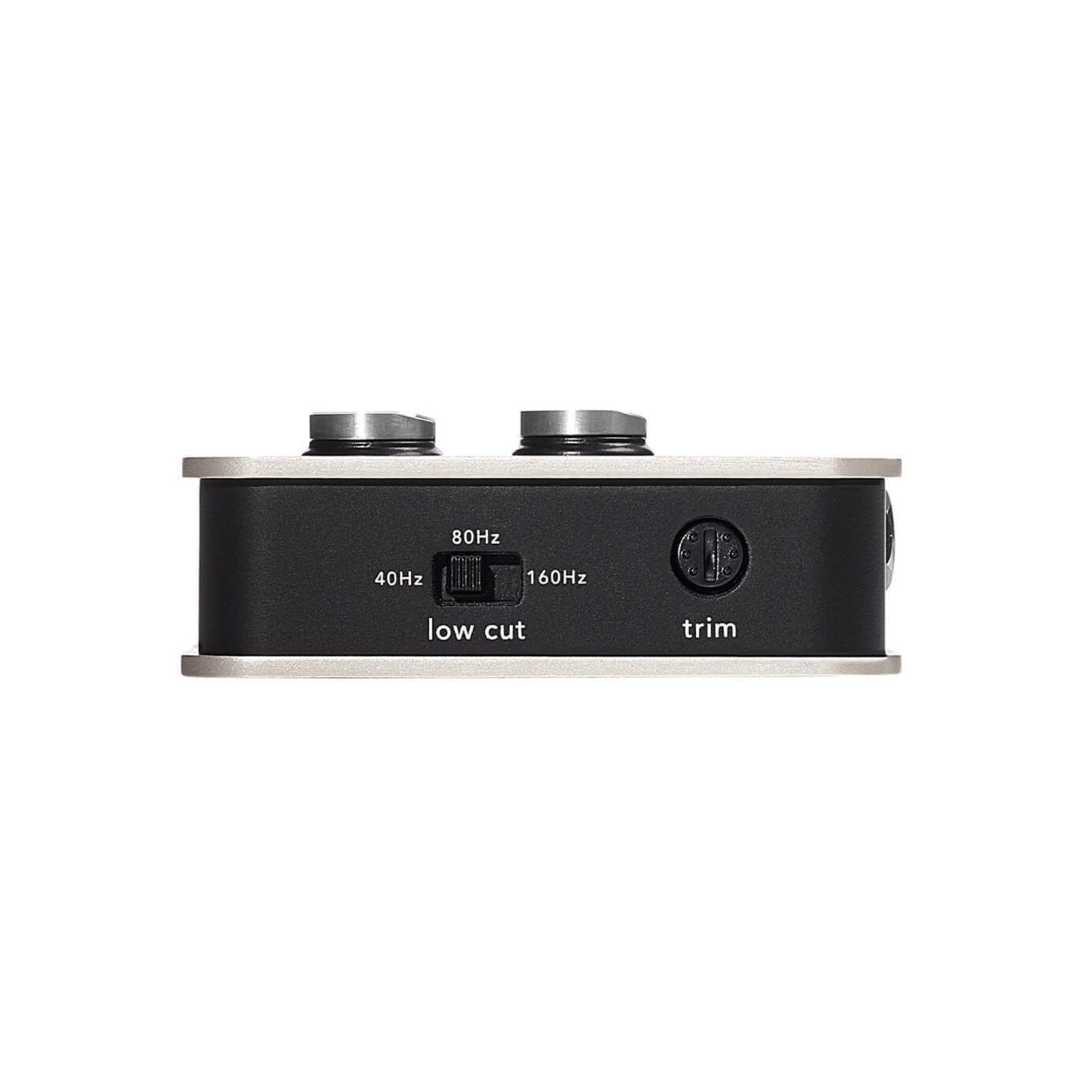

Controls: Volume, Bass, Middle, Mid Freq, Treble, EQ mode (guitar/bass), Boost button with 3-12 dB level wheel, Phase, D.I. pre/post, Low Cut, input Trim

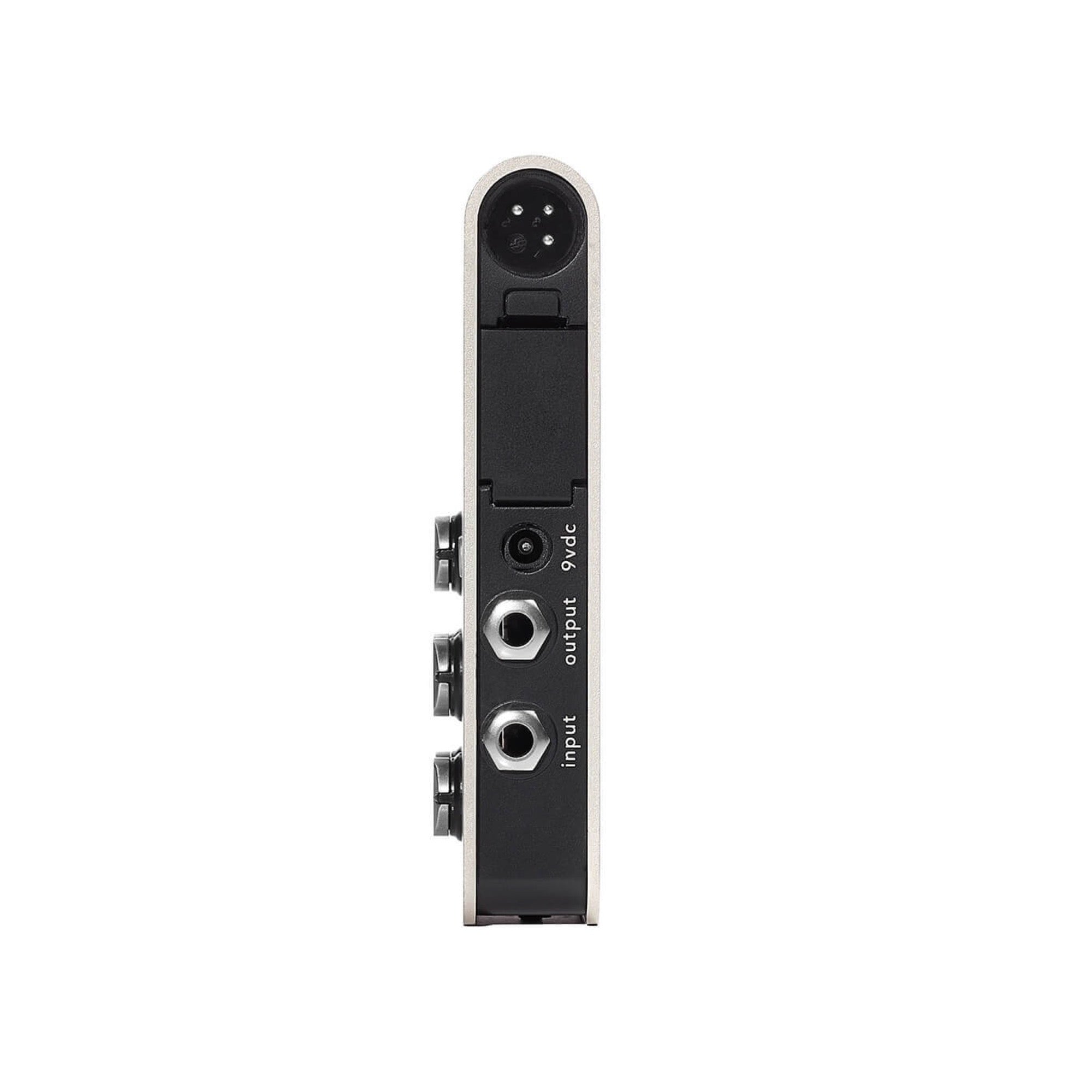

Inputs and outputs: 1/4" input, 1/4" output, balanced XLR D.I. output (auto ground lift), 9V DC inlet
Power: 9-volt battery (not included), 48-volt phantom power, or Fishman 910-R adapter (optional); battery life 70 hours
Current draw: 7 mA (typical)
Who it's for: Players running an acoustic guitar, upright bass or other pickup-equipped acoustic instrument into a PA, an amp or a recording interface.
Questions
How is it powered?
A 9-volt battery (not included, about 70 hours), 48-volt phantom power from a mixer through the XLR output, or the optional Fishman 910-R adapter.
Does it work on bass?
Yes. The EQ mode switch has a bass setting that revoices the tone controls for acoustic and electric bass.
Do I still need a D.I. box?
No. The balanced XLR output is the D.I., with a pre/post EQ switch and an automatic ground lift when the quarter-inch output is also in use.
